Elements created in the Legacy application are preserved during migration, but some may appear differently or be available as reference data rather than editable content.

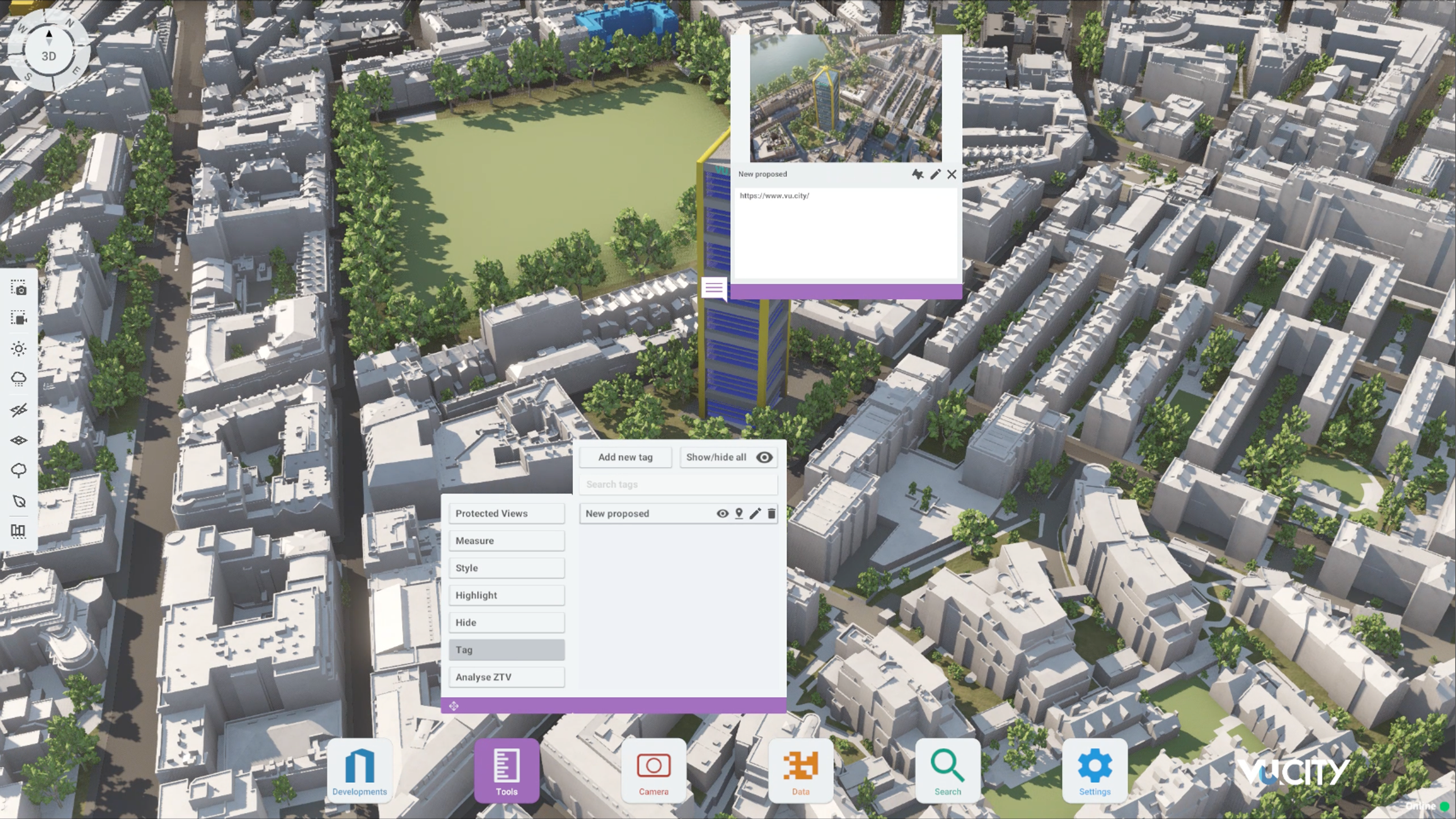

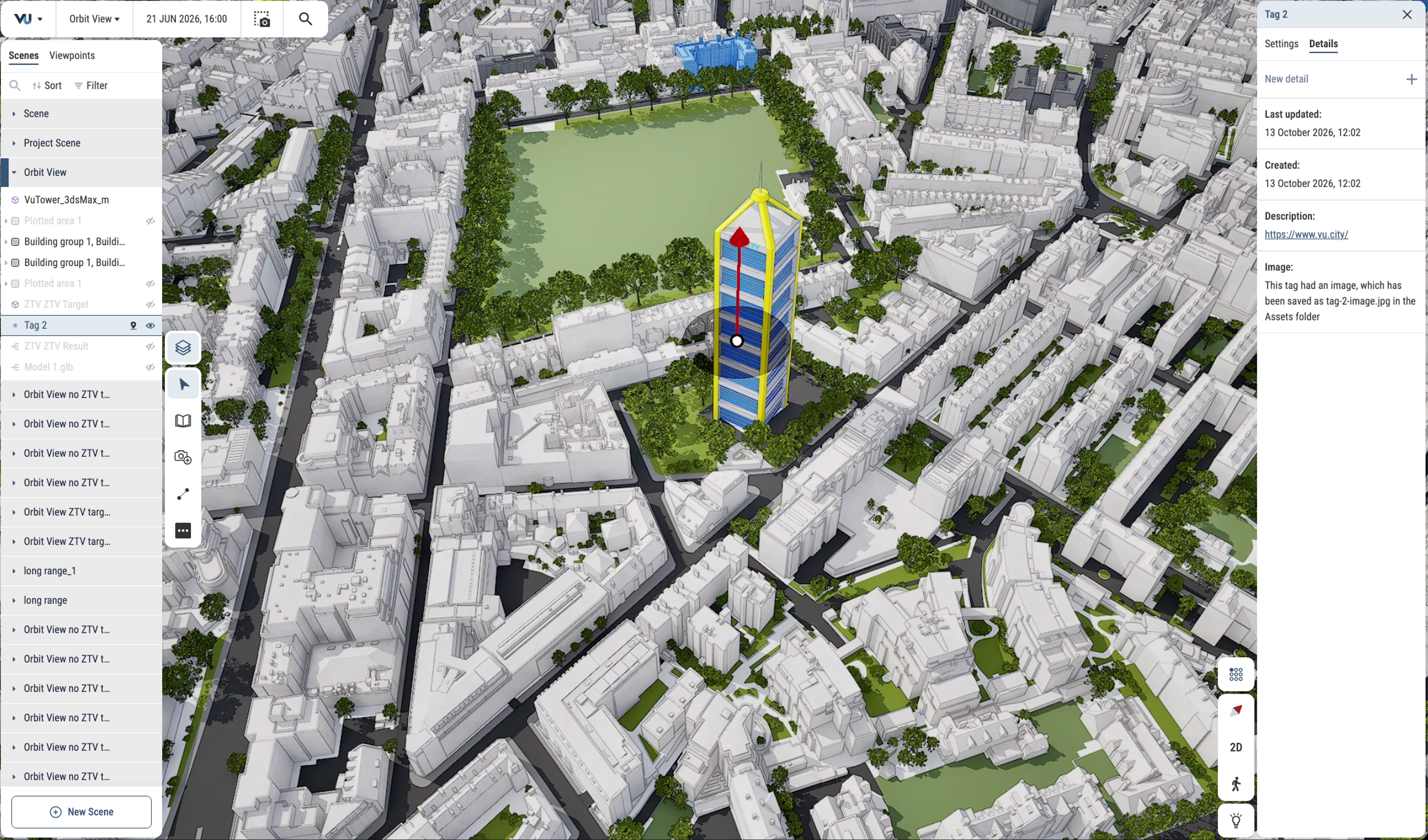

Tags

Annotations created in Legacy are migrated with the project and remain available in the new 3D application.

Their appearance or behaviour may differ because these elements are handled differently in the new application. The migrated content remains available for reference within the project. The current version of tags doesn't support the migrated tag images, they are migrated and saved to the migrated project folder.

• Tag



• Legacy

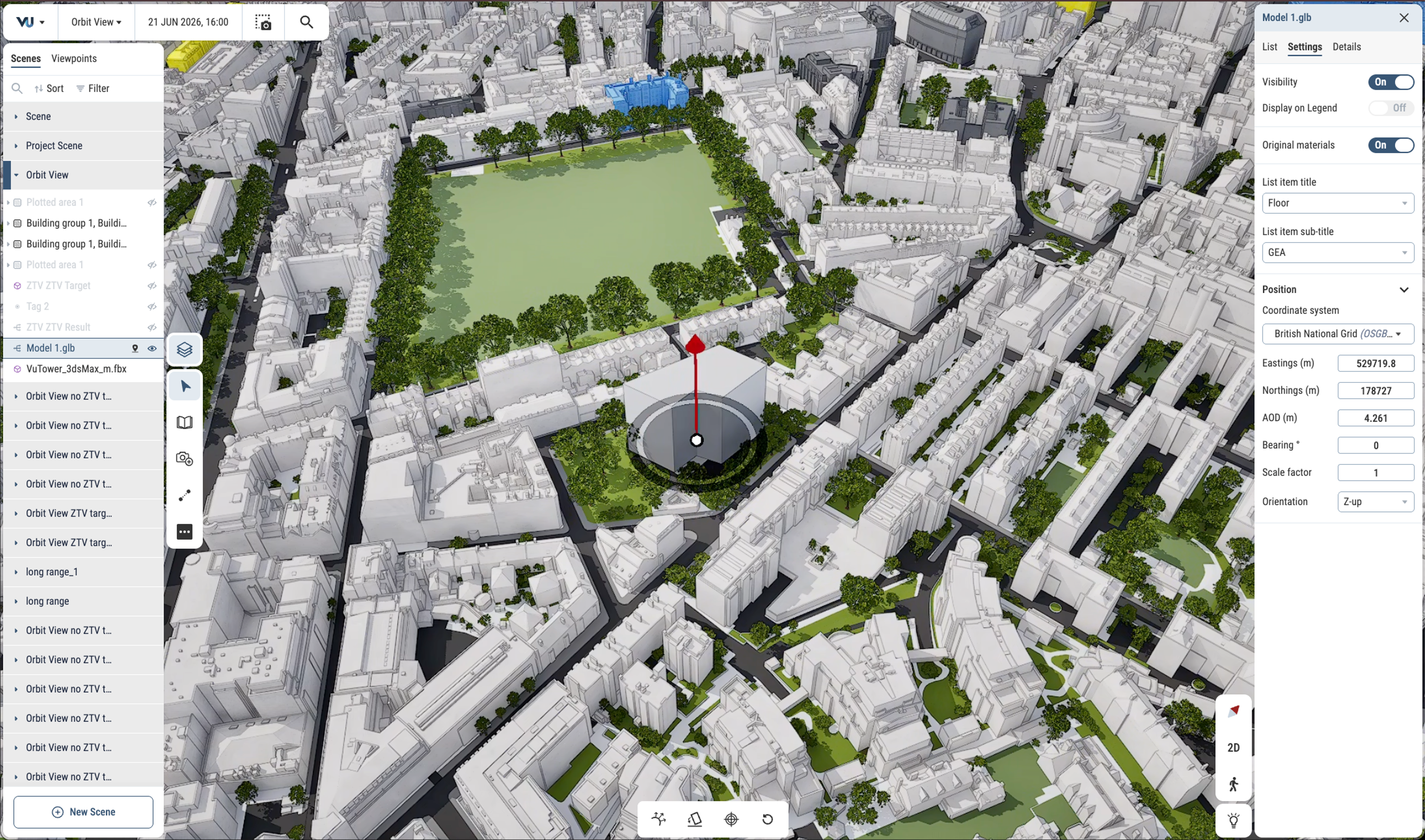

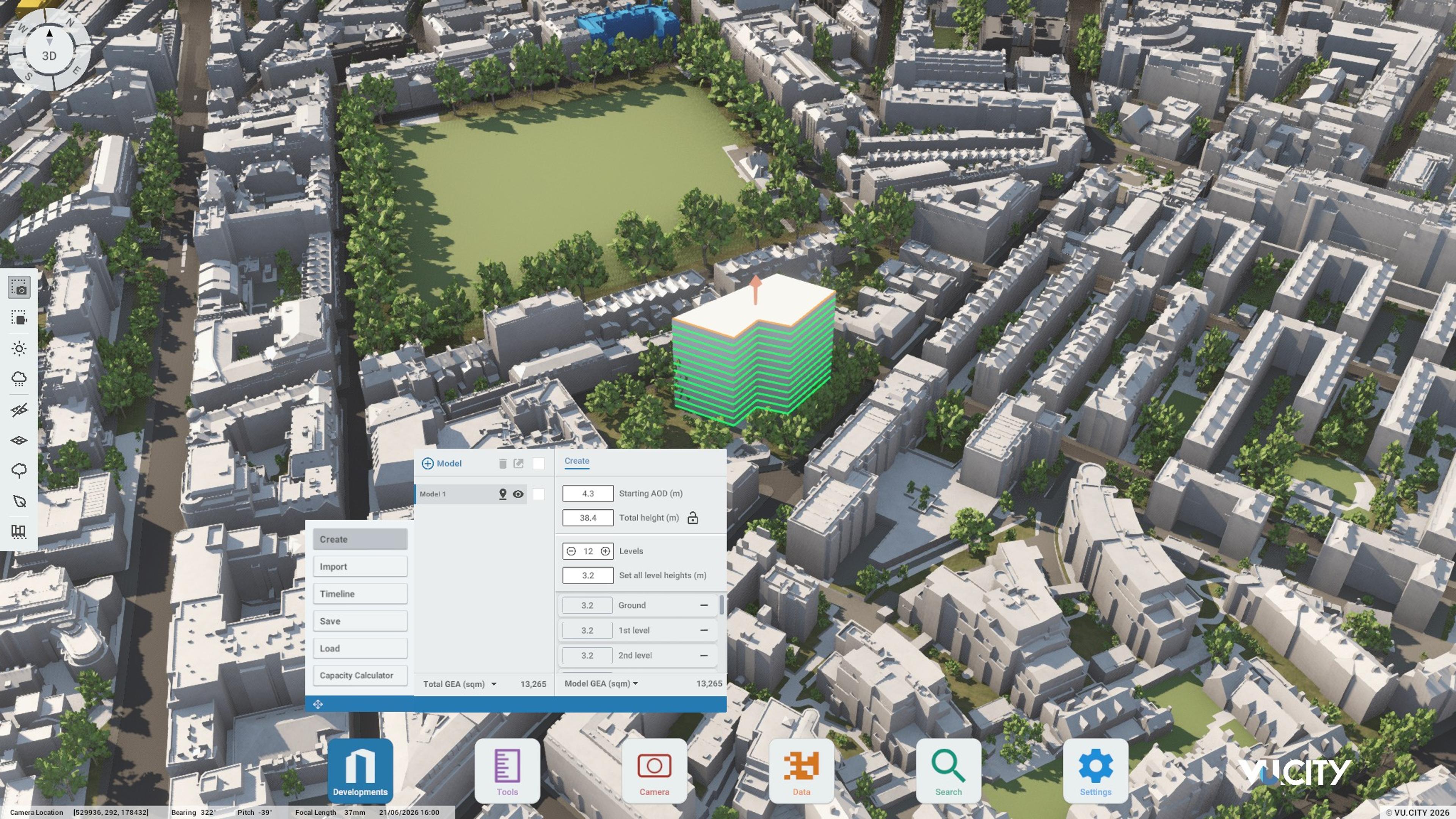

Create tool massings

Geometry created using certain Legacy tools is migrated as reference data. It remains visible in the project but cannot be modified using the corresponding tools in the new application. This allows previously created content to remain available without implying that it can be edited or regenerated in the same way as newly created elements.

• Create



• Legacy

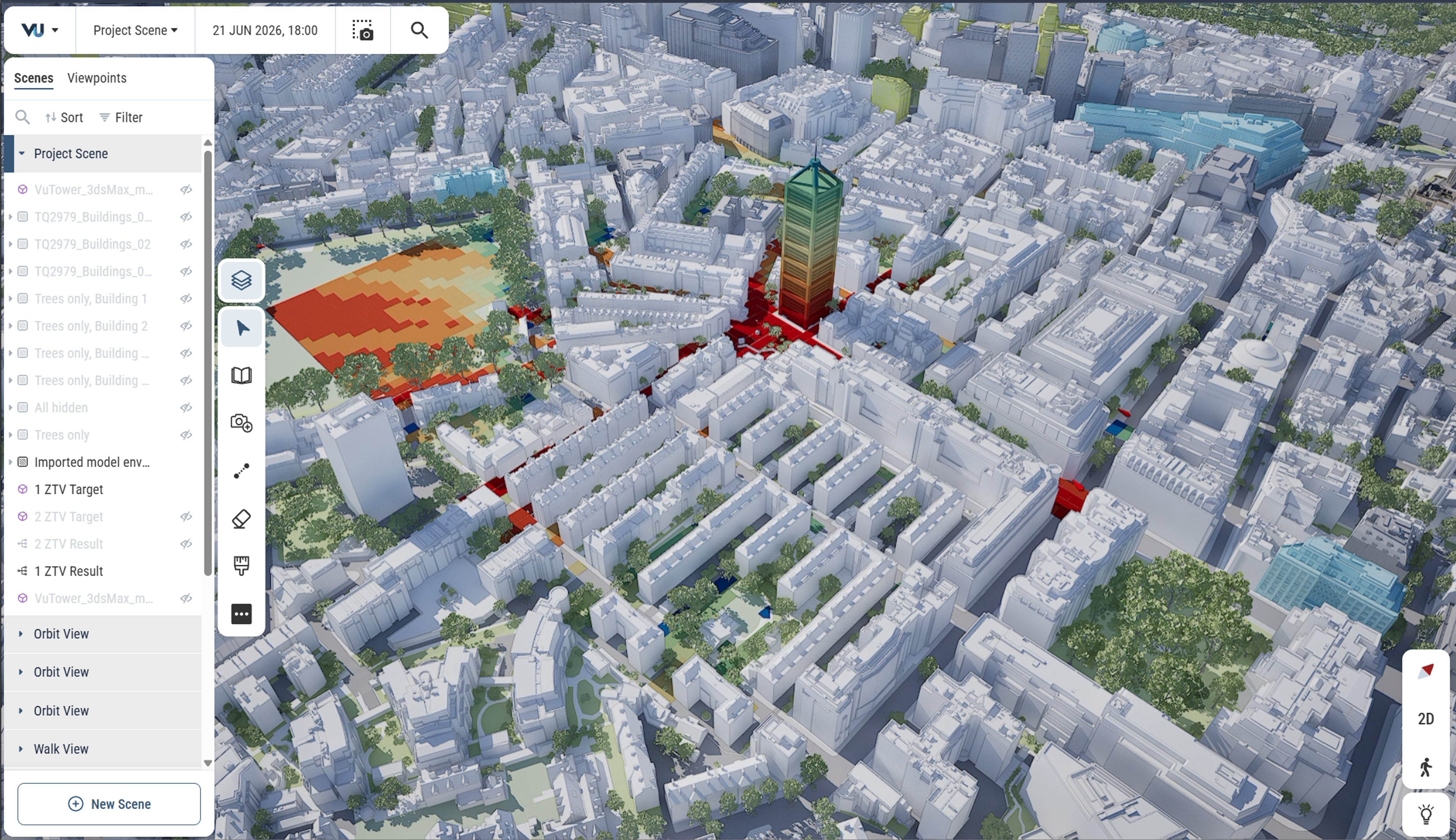

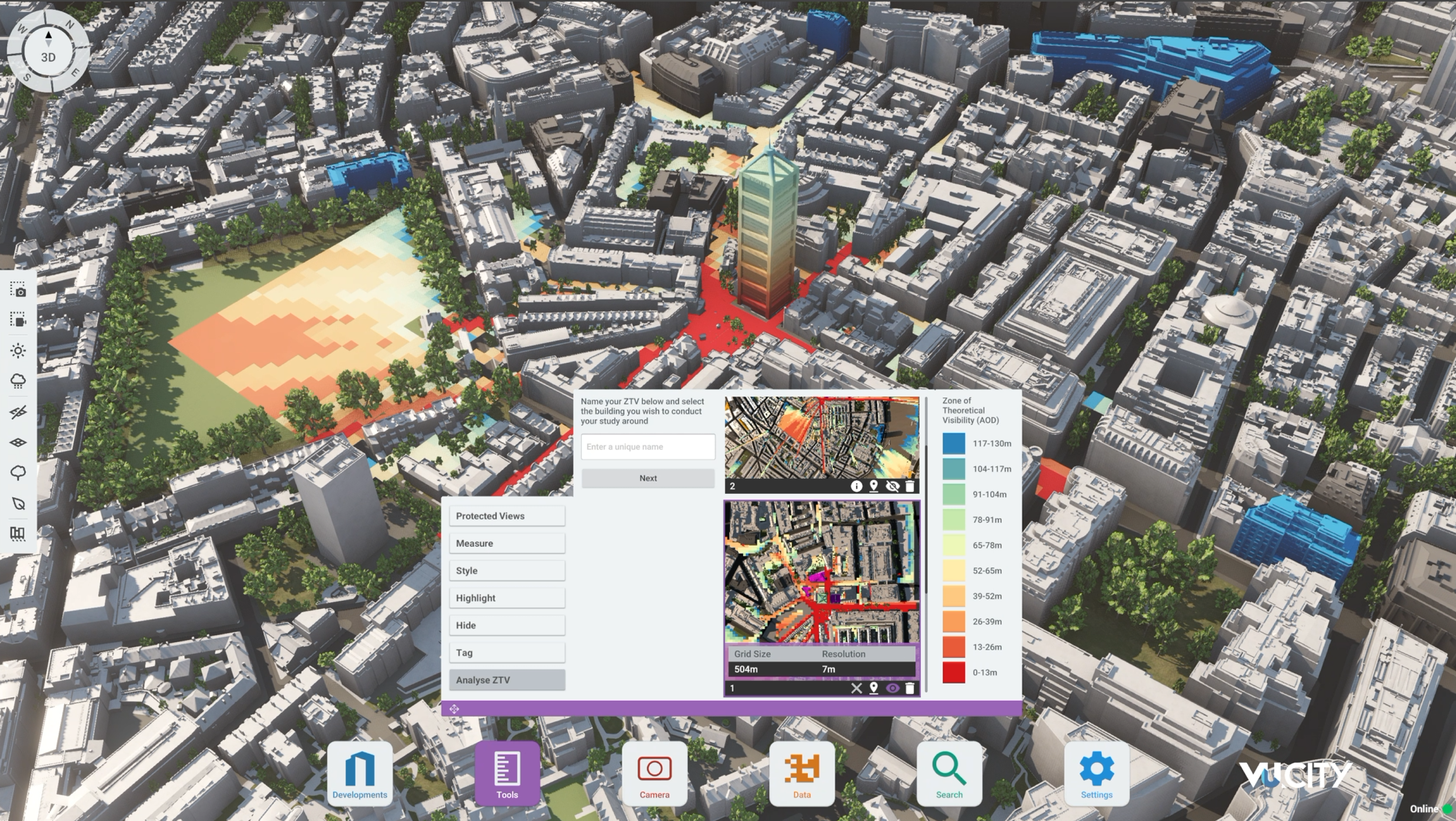

ZTV analysis

Existing ZTV results are migrated with the project and remain available in the new 3D application as a data overlay. The migrated result provides a reference to the analysis that was created in Legacy and is not lost during migration.

• ZTV



• Legacy



ZTV calculations work differently in the new application, so migrated results may not correspond exactly to a newly generated ZTV. The new ZTV tool also provides different options for configuring the analysis, for this reason, we recommend rerunning ZTV analysis where required. This creates a new result using the current ZTV calculation and allows the available analysis settings to be configured as required. The migrated Legacy result remains available alongside the new analysis, allowing the original result to be referenced when needed.

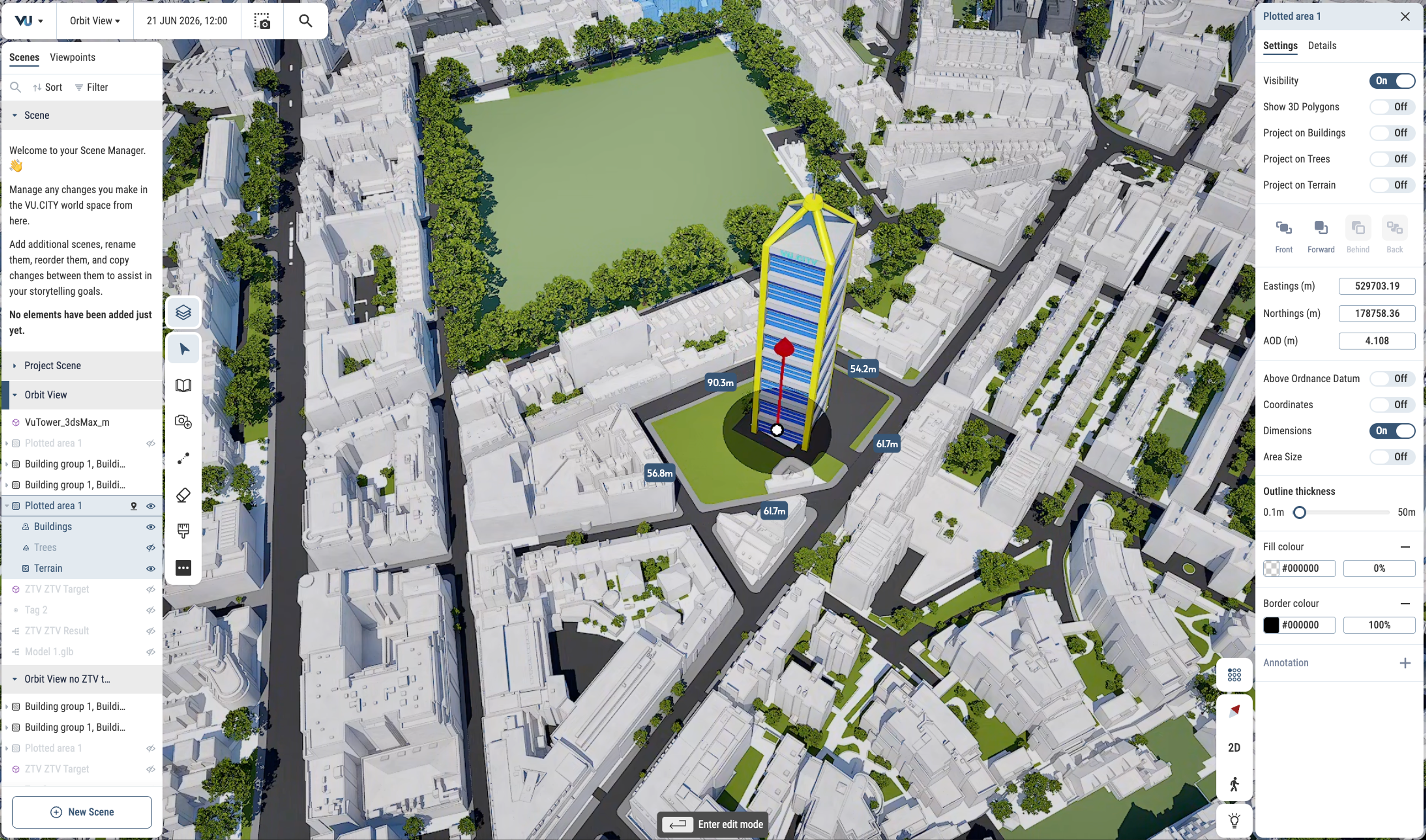

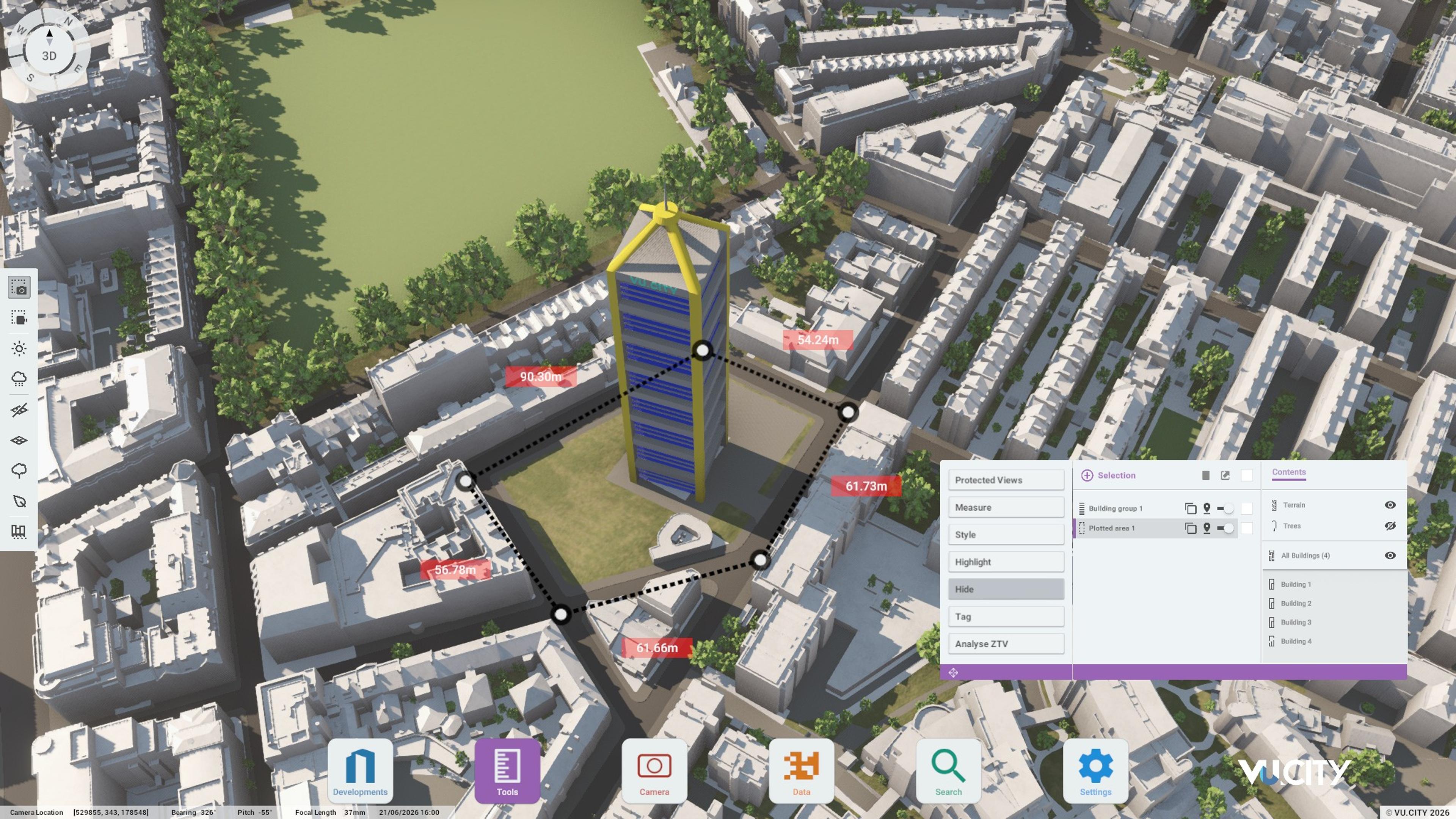

Measurements and Hide area

Measurements and hidden areas created in Legacy are migrated with the project and remain available in the new 3D application. Their appearance may differ in the new application, but the original result is preserved.

• Hide and measure



• Legacy



Notes on visual differences

While the majority of content is preserved, some visual aspects may appear differently. Where differences occur, they are typically related to improvements in rendering, data handling, or tool behaviour rather than loss of information.
